低-中-高磷化学镀镍 Ni-P
有色金属与黑色金属的功能性镀层（化学镍镀层）
Functional coatings (electroless nickel plating) for non-ferrous and ferrous metals

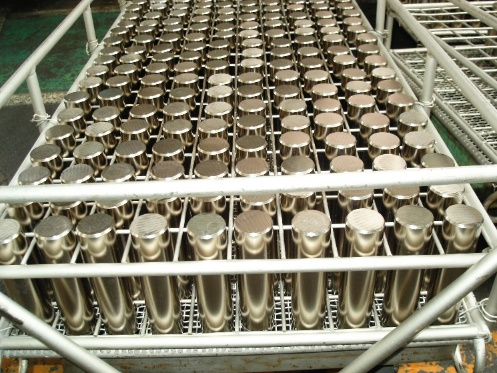

Ni-P化学镀
Ni-P是一种用于金属及非金属（陶瓷、塑料、玻璃等基材）的功能性镀层工艺（化学镀镍）可以有效地保护了工件免于磨损和腐蚀，提高工件的使用时间及提高其性能。化学镍可以覆盖几乎所有金属和塑料。
Ni-P is a functional electroless nickel plating process for metals and non-metals (substrates including ceramics, plastics, glass, etc.). It effectively protects workpieces from wear and corrosion, extending their service life and enhancing performance. Electroless nickel can coat nearly all metals and plastics.
Ni-electroless nickel coatings offer chemical resistance, high dimensional accuracy, excellent wear resistance, conductivity and superior hardness. They form a uniform coating matching the original contour—even for complex workpieces with edges, indentations, cavities or holes—enabling one-step forming without secondary machining.
Ni-P的耐磨性和耐腐蚀性取决于该层的磷含量。该含量可以根据电解质的组成增加或减少，并且可以在特定的工艺条件下改变。镀层的厚度也会影响涂层的耐腐蚀性和耐磨性。含磷量越高越耐腐蚀，含磷量越低越耐磨；镀层越厚耐腐蚀和耐磨性越高；基于客户需求达到平衡性。
Ni-P's wear and corrosion resistance depend on phosphorus content (adjustable) and thickness: higher phosphorus resists corrosion better, lower boosts wear resistance; greater thickness improves both. Balanced per needs.
特性:
1.酸性环境中优异的耐腐蚀性;
2.耐中性盐雾1000小时（特殊工艺及厚度）;3.通过硝酸测试的半光亮沉积物;
4.高达 30μm 或更厚的无坑沉积，厚度可镀超过80μm;
5.抗压应力沉积涂层;
6.硬度: 镀层后 HV>450 热处理300°C 3小时 HV>800;
7.磁性：非磁性
Product Type: Ni-P (H) High-Phosphorus Coating
Description: 10–13% phosphorus content, ideal for components needing long-term corrosion resistance and high-toughness coatings. Features: - Excellent corrosion resistance in acidic environments - 1000-hour neutral salt spray resistance (special process & thickness) - Semi-bright deposits passing nitric acid test - Pit-free deposition up to 30μm (over 80μm achievable) - Compressive stress coating - Hardness: >HV450 as-plated; >HV800 after 3h heat treatment at 300°C - Non-magnetic
1.耐中性盐雾1000小时（特殊工艺及厚度）;
2.高达 30μm 或更厚的无坑沉积，厚度可镀超过80μm;
3.轻微抗拉应力;
4.硬度: 镀层后 HV>450 热处理300°C 3小时 HV>800;
5.磁性：略带磁性
Product Type: Ni-P (M) Medium-Phosphorus Coating Description: 5–10% phosphorus content, suitable for components seeking a balance between corrosion resistance and wear resistance. Features: - 1000-hour neutral salt spray resistance (special process & thickness) - Pit-free deposition up to 30μm (over 80μm achievable) - Slight tensile stress - Hardness: >HV450 as-plated; >HV800 after 3h heat treatment at 300°C - Slightly magnetic
产品简介: 磷含量在1％至2％之间，匀且坚硬的镍-磷合金，硬度高，耐磨，韧性好
1.镀层硬度高，在不做任何热处理情况下可以达到HV>650;
2.苛刻环境下的耐腐蚀
3.轻较低的电阻率
2.良好的焊接能力
4.硬度: 镀层后 HV>650 热处理300°C 3小时 HV>950;5.磁性：具有磁性
Product Type: Ni-P (L) Low-Phosphorus Coating Description: 1–2% phosphorus content, a uniform, hard nickel-phosphorus alloy with high hardness, wear resistance and good toughness. Features: - High hardness: >HV650 as-plated (no heat treatment needed) - Corrosion resistance in harsh environments - Relatively low electrical resistivity - Good weldability - Hardness: >HV650 as-plated; >HV950 after 3h heat treatment at 300°C - Magnetic
