化学镀镍磷硼 Ni-P+B
 |
 |

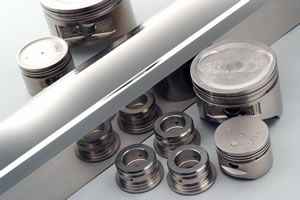

·运输设备零件/压缩机/活塞等
·铝制滑动件
·不规则离合器、自动变速箱、凸轮轴、襟翼、气门、骰 子、法兰盘、树脂磨具
·调心轴承压缩机零部件、滑梯、发动机气缸、排气烟囱、 活塞杆、轴长、线轴
- Transport equipment parts/compressors/pistons, etc. - Aluminum sliding parts - Irregular clutches, automatic transmissions, camshafts, flaps, valves, dice, flanges, resin abrasives - Self-aligning bearing compressor components, slides, engine cylinders, exhaust stacks, piston rods, shaft lengths, spools
具有优异耐磨性和高硬度的新型功能镀层
A new functional coating with excellent wear resistance and high hardness.
Ni-P+B
与铝材结合性更好，滑动性极佳 Better adhesion to aluminum and excellent sliding performance.
NI-P+B 是一种低磷低硼高性能镀层，兼具化学镀Ni-P和化学镀 Ni-B的特性，功能比以往更加丰富。特别是在恶劣条件下具有优异的耐磨性，耐高温性，是精密零件和汽车零件的理想选择。 Ni-P+B: low-phosphorus, low-boron high-performance coating. Combines electroless Ni-P and Ni-B properties with richer functions. Excellent wear and high-temperature resistance under harsh conditions, ideal for precision and auto parts.Ni-P+B 镀层特性
镀层组成: 镍 97wt% 以上，磷 1-3wt% 以上，硼 1wt% 以下
光泽度: 与化学镀镍磷不同 , 它具有明亮的光泽。

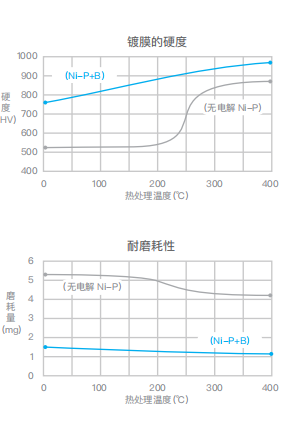

Ni-P+B Coating Properties: - Composition: ≥97wt% Ni, 1–3wt% P, <1wt% B. - Wear resistance: 2–3x electroless Ni-P (low friction, high hardness). - Hardness: >HV700 as-plated; HV1000 after 400°C heat treatment. - Heat resistance: Better than Ni-P, usable at 400°C. - Impact resistance: Tough, no cracking/brittleness. - Lubricity: 1/3 friction coefficient of Ni-P, prevents seizing. - Precision: ±10% thickness tolerance, uniform. - Gloss: Bright (unlike Ni-P).
